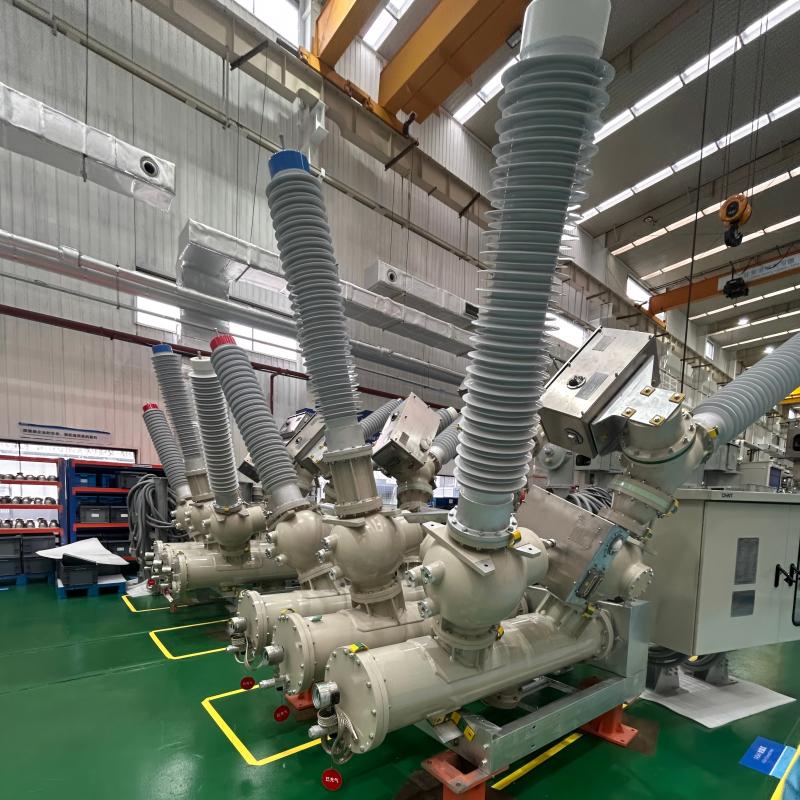

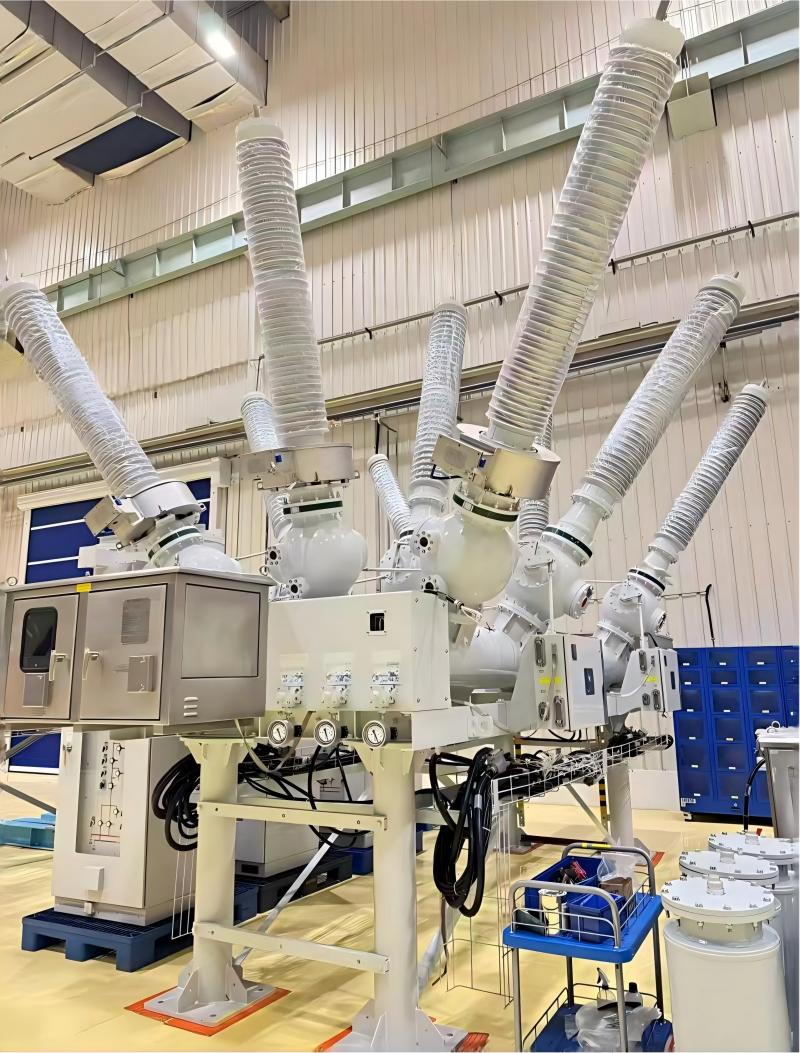

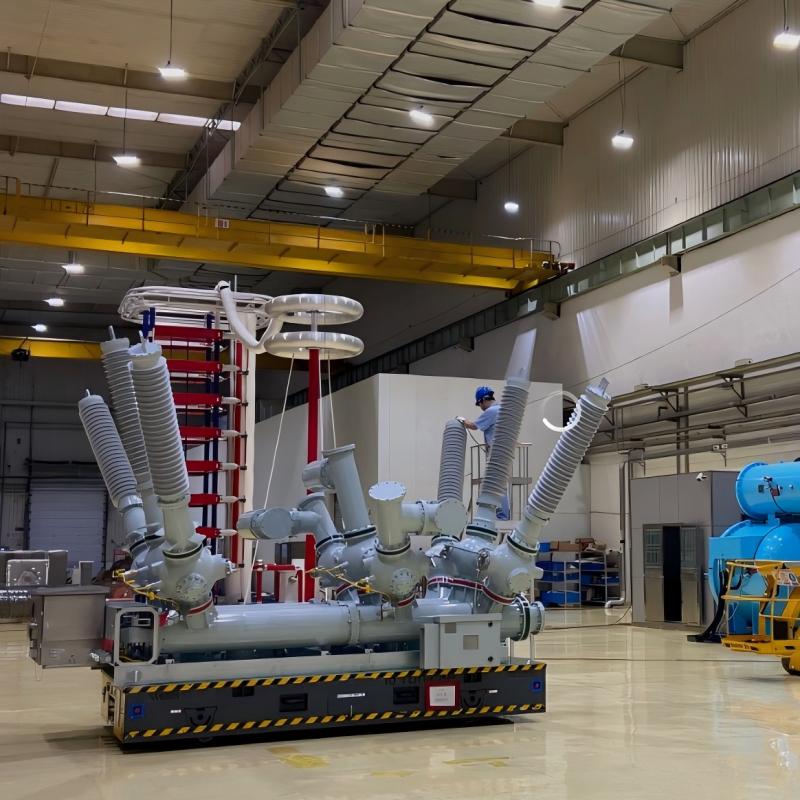

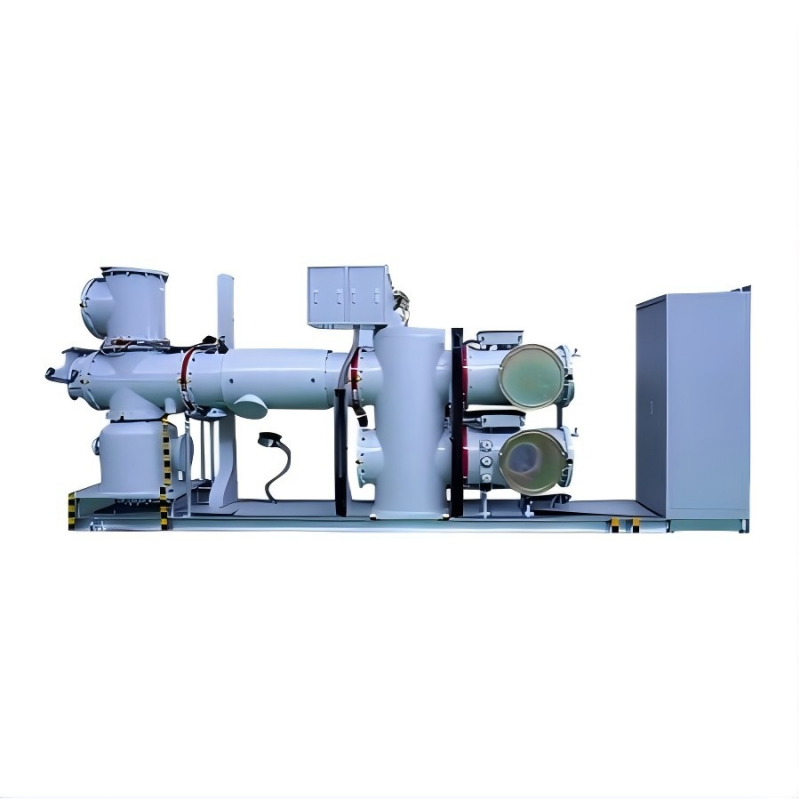

110kV Gas Insulated Switchgear (GIS)
Product Overview
SOLARIS 110kV Gas Insulated Switchgear (GIS) is a fully integrated, metal-enclosed switchgear system designed for 110kV (126kV class) three-phase AC 50/60Hz power systems. It encloses all core primary components – including circuit breakers, disconnectors, earthing switches, current/voltage transformers, busbars, surge arresters, and line bushings – in a grounded metallic tank filled with SF6 gas, which acts as both insulation and arc-extinguishing medium. This design delivers superior performance in a compact footprint, making it ideal for urban substations, industrial power plants, and areas with limited space or harsh environmental conditions.
Key Features
Ultra-Compact Design: The GIS requires only 10-20% of the space needed for conventional air-insulated switchgear (AIS), drastically reducing substation land costs and installation time.
High Reliability & Safety: Fully sealed SF6 gas enclosure eliminates exposure to dust, moisture, pollution, and wildlife, minimizing the risk of flashovers and equipment failures.
Low Maintenance Requirements: With hermetically sealed components and long-life SF6 gas, the system operates maintenance-free for decades, reducing operational costs and downtime.
Robust Environmental Adaptability: Suitable for coastal, industrial, desert, and high-altitude environments, withstanding extreme temperatures, humidity, and pollution levels.
IEC/GB Compliant: Designed and tested to meet international standards including IEC 62271 and GB/T 11022, ensuring consistent performance and compliance with global power grid requirements.
Modular Configuration: Modular bay design allows flexible expansion, easy integration with other substation equipment, and simplified installation and commissioning.
Core Components & Functions
Circuit Breaker: The heart of the GIS, using SF6 gas for arc extinction to safely interrupt fault currents with minimal wear and high reliability.
Disconnector & Earthing Switch: Three-position design (open/closed/earthed) ensures safe isolation and grounding for maintenance operations.
Current/Voltage Transformer: Integrated into the GIS enclosure for accurate metering, protection, and control of power system parameters.
Busbar System: Compact, SF6-insulated busbars eliminate external insulation risks and reduce overall footprint.
Surge Arrester: Protects the system from lightning strikes and switching overvoltages, ensuring equipment longevity.
Line Bushing: Sealed, pollution-resistant bushings connect the GIS to overhead lines or underground cables, maintaining SF6 gas integrity.
Technical Parameter
Parameter | Value |
Rated voltage | 126kV (110kV class) |
Rated frequency | 50Hz / 60Hz |
Rated current | 1250A, 2000A, 3150A, 4000A |
Rated Short-Circuit Breaking Current | 31.5kA / 40kA / 50kA |
Rated Short-Circuit Withstand Current (3s) | 31.5kA / 40kA / 50kA |
SF6 Gas Pressure (at 20°C) | 0.6MPa (typical, gauge pressure) |
Enclosure Material | High-quality aluminum alloy / stainless steel |
Insulation Medium | SF6 gas (purity ≥ 99.99%) |
Ambient Temperature Range | -40°C ~ +55°C |
Altitude Adaptation | ≤ 3000m (customizable for higher altitudes) |
Applications
Urban and semi-urban substations with limited land availability
Industrial power plants, mines, and oil & gas facilities
Coastal and industrial zones with high pollution or salt fog
High-altitude and cold-climate regions
Renewable energy projects (wind/solar farms) requiring compact substation solutions
Why Choose SOLARIS 110kV GIS?
Proven Manufacturing Expertise: Built on years of experience in high-voltage equipment production, with strict quality control and factory testing for every unit.
Customizable Solutions: Tailored configurations to meet specific project requirements, including special voltage classes, current ratings, and environmental adaptations.
Comprehensive Support: Full lifecycle services including design, manufacturing, installation supervision, commissioning, and after-sales maintenance.
Cost-Effective Operation: The compact design reduces civil construction costs, while low maintenance needs minimize long-term operational expenses.
Certified Quality: ISO 9001, ISO 14001, and OHSAS 18001 certified production facilities, ensuring consistent quality and environmental compliance.
