10 sheds Post Insulator P13

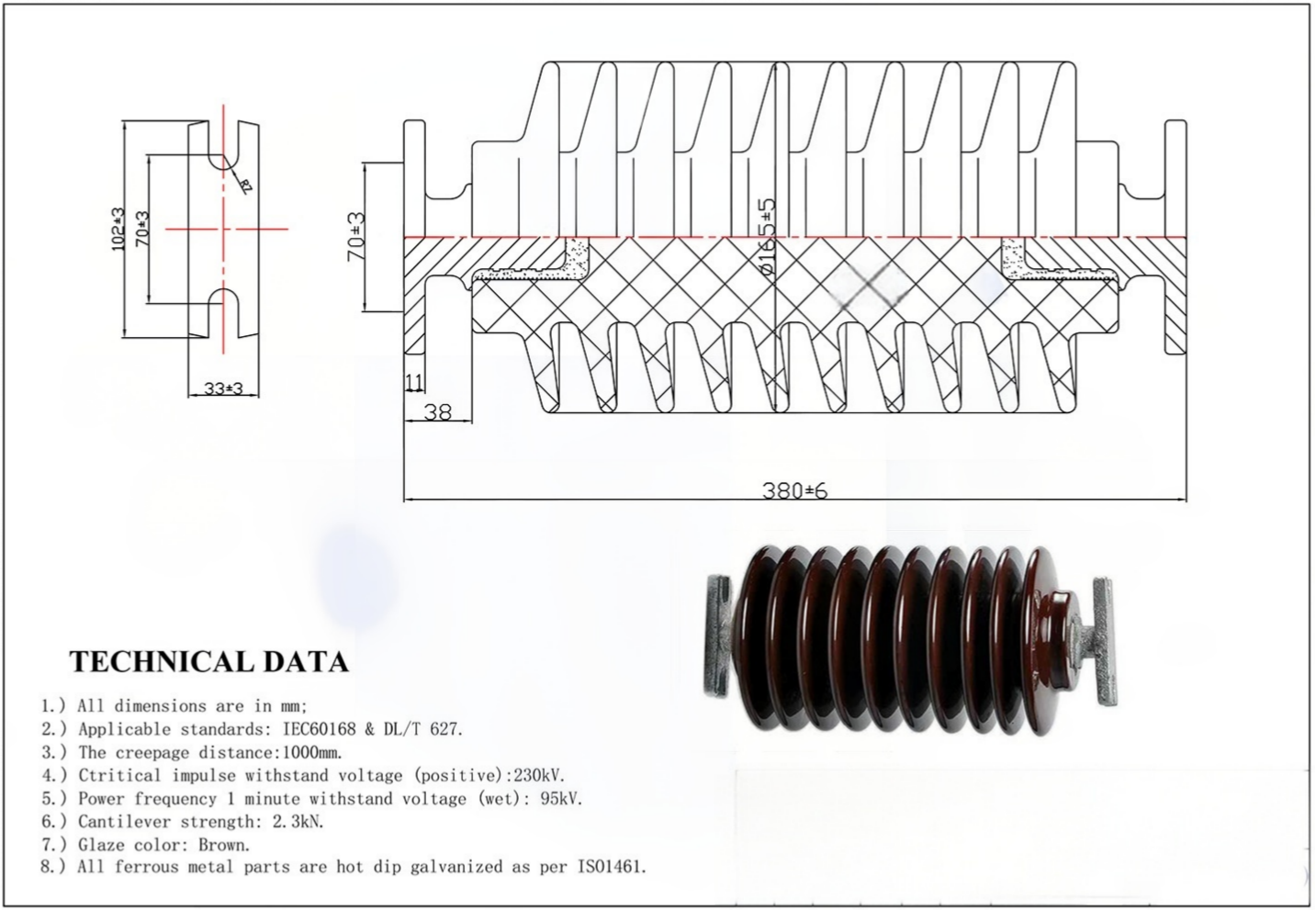

Product drawing
Product parameters
| Disconnector Post insulator - Standard DIN 40680 | ||
| Type | P-13 (10Sheds) | |
| Diameter(D) | mm | 160 |
| High(H) | mm | 380 |
| Leakage distance (Creepage distance) | mm | 1000 |
| Cantilever failing load | kN | 2.3 |
| Tensile strength | kN | 27.5 |
| Rated voltage | kV | 33 |
| Lightning impulse withstand voltage | kV | 170 |
| Wet power frequency flashover voltage | kV | 95 |
| Torsion failing load | N.m | 560 |

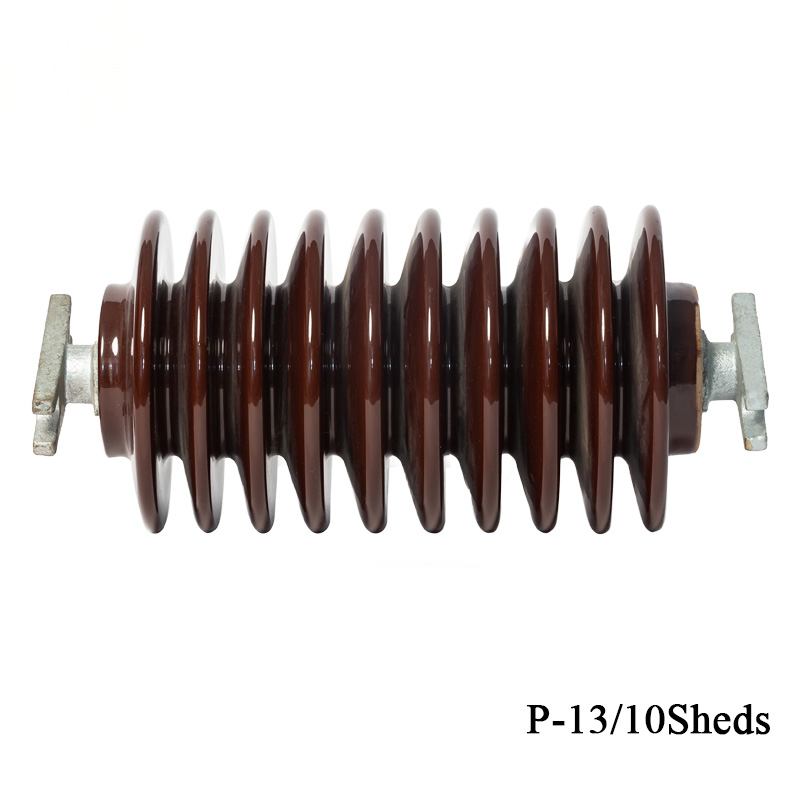

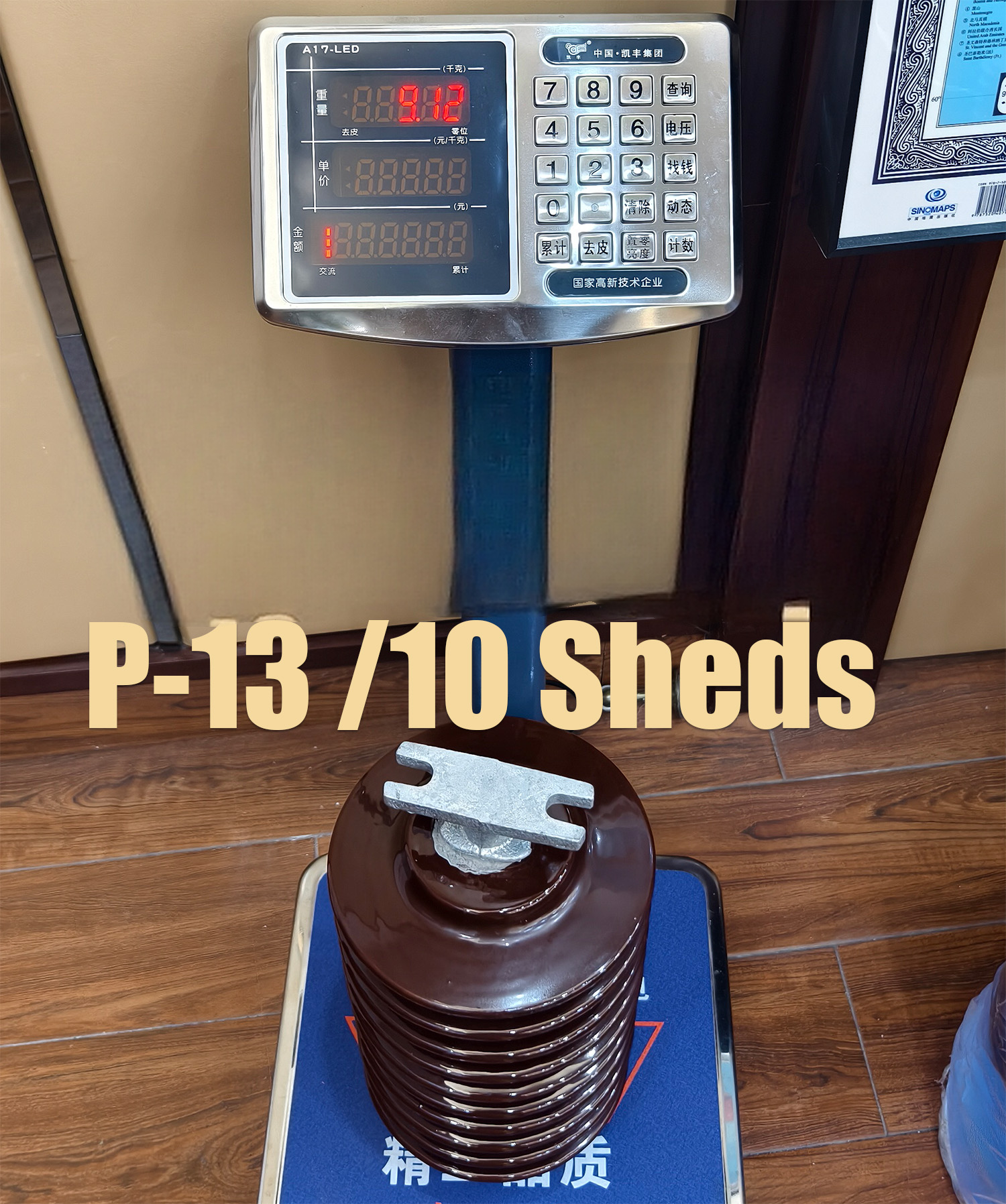

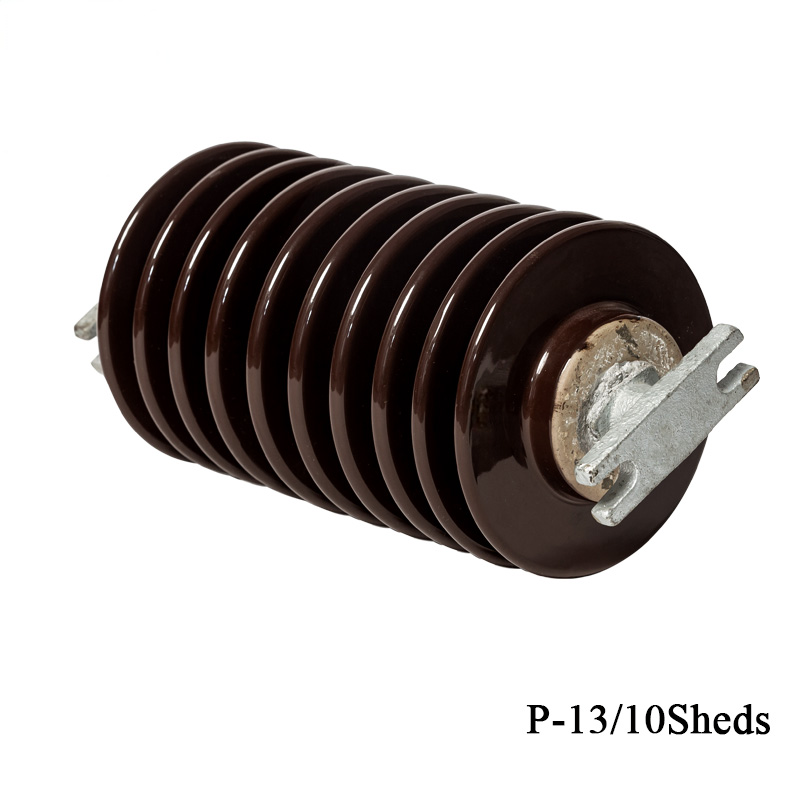

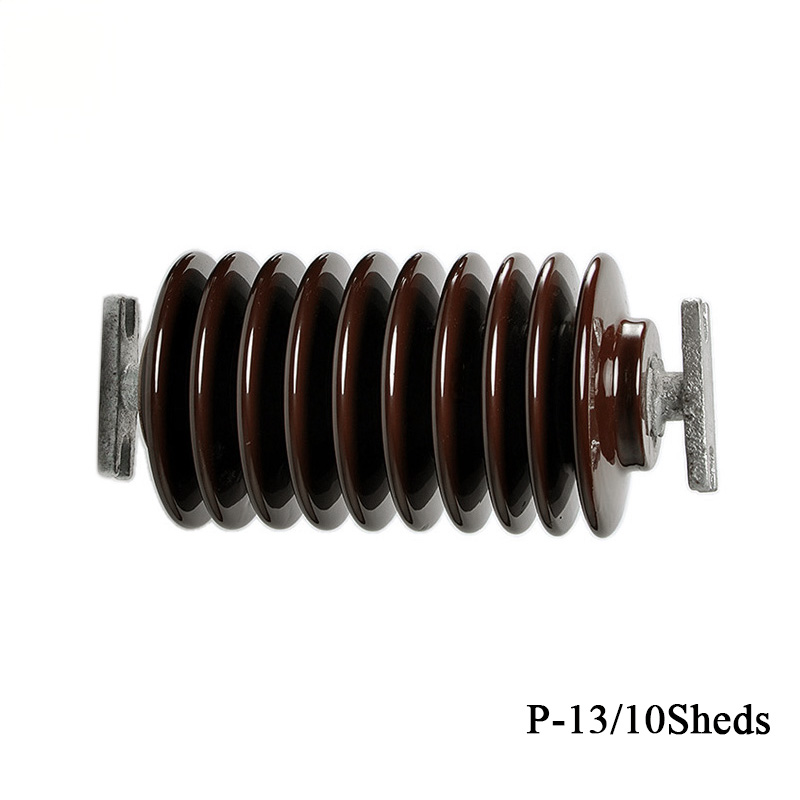

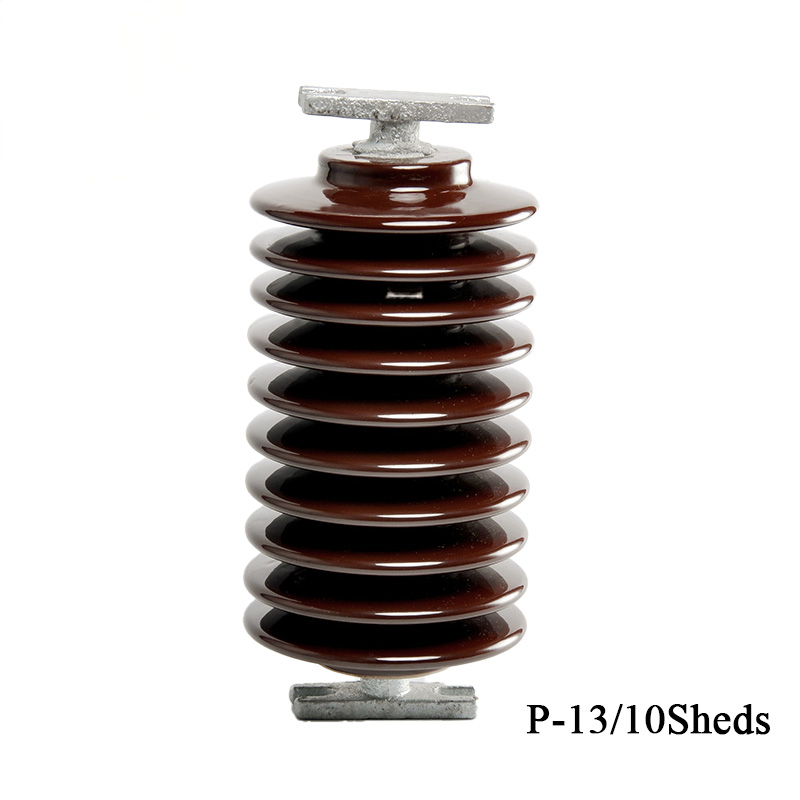

Detailed Photos
