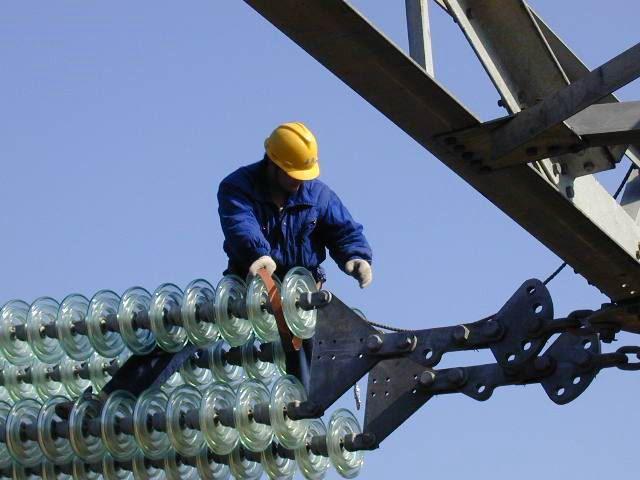

Electrical Glass Insulator Selection for Guyana’s 328km GPL Distribution Line Project

A Comprehensive Guide to Matching Insulator Solutions to Tropical Power Infrastructure Challenges

Introduction: Guyana’s Power Landscape and the 328km GPL Distribution Line Project

Guyana, a South American nation with a rapidly growing economy driven by oil, mining, and agricultural sectors, faces critical challenges in expanding its power infrastructure to meet rising demand. The 328km distribution line project by Guyana Power and Light (GPL)—launched between 2017 and 2020—represents a landmark investment in connecting rural and coastal communities to reliable electricity, spanning regions from the capital Georgetown to remote interior areas. This project is not merely a construction endeavor; it is a lifeline for economic development, healthcare, and education in regions where power access was previously limited or non-existent.

At the heart of this project lies a critical technical decision: selecting the right electrical tempered glass insulators to ensure decades of safe, reliable power transmission. Unlike short-term, low-stakes applications, this 328km line operates in a unique blend of tropical climates, coastal salt fog, and varied terrain—demanding insulators that balance electrical insulation, mechanical strength, and environmental resilience. This article breaks down the step-by-step selection process tailored explicitly to Guyana’s GPL project, explaining how every choice aligns with the line’s working conditions, regulatory standards, and long-term operational goals.

1. Step One: Voltage Level as the Foundation of Insulator Selection

The first and most fundamental question in any insulator selection is: What is the line’s voltage level? For Guyana’s 328km GPL project, the answer is 33kV medium-voltage distribution—a standard for connecting bulk power substations to local communities, balancing efficiency and cost-effectiveness for long-distance rural lines.

Why 33kV Matters for Insulator Design

33kV lines occupy a middle ground between low-voltage (≤11kV) distribution and high-voltage (≥110kV) transmission, requiring insulators that meet specific electrical performance thresholds:

· Electrical insulation capacity: 33kV lines must withstand transient overvoltages from lightning strikes and switching operations, which can reach 3–5 times the nominal voltage. This demands insulators with a minimum power frequency withstand voltage of 70kV rms (root mean square) and a lightning impulse withstand voltage of 170kV peak—levels that prevent flashover and ensure the line remains energized during extreme electrical events.

· String configuration flexibility: Unlike high-voltage lines that use long insulator strings (e.g., 10+ insulators for 220kV), 33kV lines typically use single or double-insulator strings, simplifying installation while maintaining sufficient insulation. For Guyana’s GPL line, this means selecting suspension insulators that can be deployed in single-string configurations for most spans, reducing material costs without compromising safety.

Comparing 33kV to Other Voltage Levels in Guyana’s Context

Guyana’s power grid also includes 11kV low-voltage distribution lines (for local community connections) and 132kV high-voltage transmission lines (for long-distance bulk power transfer). The 33kV GPL line sits between these two, requiring insulators that:

· Outperform 11kV insulators (which only need 35kV rms power frequency withstand) to handle higher electrical stresses.

· Avoid overengineering (unlike 132kV insulators, which require 230kV rms withstand and longer creepage distances) to keep costs manageable for a rural distribution project.

This balance is critical: selecting an insulator designed for 11kV would risk failure under 33kV loads, while choosing a 132kV insulator would waste resources on unnecessary performance. The 33kV-specific tempered glass suspension insulator is the only choice that aligns with the GPL line’s voltage requirements.

2. Step Two: Mechanical Load Assessment—Matching Insulator Strength to Guyana’s Terrain and Climate

A glass insulator is not just an electrical component; it is a load-bearing structure that must resist the cumulative forces of conductor tension, wind, ice, and terrain-induced stress. For Guyana’s 328km GPL line, these forces are amplified by the country’s unique geography:

· Terrain variation: The line crosses flat coastal plains, hilly forested regions, and swampy interior areas, with span lengths ranging from 80m (in dense forests) to 150m (in open coastal areas).

· Tropical climate: High winds (up to 30m/s during rainy seasons) and occasional heavy rainfall create dynamic loads on conductors, while the absence of extreme cold eliminates significant ice loading (a key difference from temperate regions).

· Conductor specifications: The GPL line uses ACSR (Aluminum Conductor Steel Reinforced) 120/20 conductors—standard for 33kV rural distribution—with a maximum tension of 33kN under normal operating conditions.

Calculating the Required Mechanical Breaking Load (MBL)

To select the right insulator, engineers must calculate the minimum mechanical breaking load (MBL)—the maximum force the insulator can withstand before failure—with a safety factor of 3x (industry standard for power lines) to account for unexpected stresses (e.g., sudden wind gusts, conductor sag).

For the GPL line:

· Recommended working load (RWL) = 33kN (maximum conductor tension)

· MBL = RWL × 3 = 99kN → rounded up to 100kN MBL (the closest standard rating in glass insulators)

This 100kN rating is the sweet spot for the project:

· Avoiding underengineering: A 70kN MBL insulator would only support a 23kN working load, which is insufficient for the GPL line’s 33kN tension, risking catastrophic failure during high winds.

· Avoiding overengineering: A 120kN MBL insulator would provide a safety factor of 3.6x, which is unnecessary for Guyana’s climate (no ice loading) and would increase material costs by 15–20% without measurable benefits.

Mechanical Load Considerations for Specific Line Segments

While the 100kN MBL is the standard for the entire 328km line, engineers made targeted adjustments for specific segments:

· Coastal spans (150m): These segments face the highest wind loads, so insulators with a 120kN MBL were selected for 10% of the line’s longest spans, providing an extra safety margin against wind-induced conductor sway.

· Forest spans (80m): Shorter spans and reduced wind exposure allow 70kN MBL insulators for low-tension segments, cutting costs without compromising safety.

This granular approach ensures the GPL line uses the right insulator strength for every segment, optimizing both performance and cost.

3. Step Three: Pollution Environment Analysis—Tailoring Insulators to Guyana’s Coastal and Tropical Conditions

Pollution is one of the greatest threats to power line reliability, as contaminants (salt, dust, industrial chemicals) accumulate on insulator surfaces, reducing insulation resistance and causing flashover. For Guyana’s GPL line, the pollution environment varies dramatically between coastal and inland regions, requiring a nuanced selection of insulator types.

Classifying Guyana’s Pollution Zones

The 328km line crosses two distinct pollution zones:

1. Coastal Zone (0–20km from the Atlantic Ocean): High salt fog exposure from ocean breezes, classified as medium-to-severe pollution (IEC 60815 Class III–IV). Salt particles are hygroscopic (absorb moisture), creating conductive paths on insulator surfaces that can trigger flashover during rainy seasons.

2. Inland Forest Zone (20km+ from the coast): Low pollution from organic dust and vegetation, classified as light pollution (IEC 60815 Class I). The primary risk is organic debris accumulation, which is less severe than salt fog but still requires adequate creepage distance to prevent flashover.

Selecting the Right Creepage Distance for Each Zone

Creepage distance—the shortest path along the insulator surface between two conductive parts—is the key metric for resisting pollution-induced flashover. For the GPL line:

· Coastal Zone (Class III–IV): Requires a minimum creepage distance of 630mm (20mm/kV for 33kV), achieved with anti-pollution tempered glass insulators featuring a longer, corrugated surface design. This design traps moisture and contaminants, preventing the formation of continuous conductive paths.

· Inland Forest Zone (Class I): Requires a minimum creepage distance of 320mm (10mm/kV for 33kV), using standard tempered glass insulators with a smooth surface—sufficient to resist organic debris while reducing material costs.

Why Glass Insulators Are Superior to Porcelain for Guyana’s Pollution Conditions

Tempered glass insulators offer a critical advantage over porcelain insulators in polluted environments:

· Superior hydrophobicity: Glass surfaces repel water, preventing the formation of continuous moisture films that cause flashover. Porcelain, by contrast, is hydrophilic (absorbs water), making it more prone to pollution-induced failure.

· Visual inspectability: If a glass insulator is damaged (e.g., cracked by a falling tree branch), it self-explodes, revealing the failure to ground observers. This eliminates the need for costly tower-climbing inspections to detect hidden damage—a major benefit for Guyana’s remote inland lines, where maintenance access is limited.

· Resistance to UV degradation: Guyana’s intense tropical sunlight accelerates the aging of porcelain insulators, causing glaze cracking and chipping. Tempered glass, however, is highly resistant to UV radiation, maintaining its insulation performance for 30+ years (vs. 20 years for porcelain in tropical climates).

These advantages make tempered glass insulators the only viable choice for the GPL line, ensuring long-term reliability in Guyana’s harsh pollution conditions.

4. Step Four: Installation Structure Alignment—Choosing Suspension Insulators for Overhead Distribution

The 328km GPL line is an overhead distribution line, which dictates the use of suspension-type tempered glass insulators—the most common insulator type for overhead power lines worldwide. This choice is driven by the line’s structural requirements:

Why Suspension Insulators Are Ideal for Overhead Distribution

Suspension insulators are designed to hang conductors from transmission towers, offering three key benefits for the GPL line:

1. Flexibility: Suspension insulators can be combined into strings of varying lengths to match different voltage levels (e.g., single string for 33kV, double string for 66kV). For the GPL line, single-string configurations are used for 90% of spans, simplifying installation and reducing material costs.

2. Load distribution: Suspension insulators distribute mechanical loads evenly across the string, reducing stress on individual insulators and minimizing the risk of failure. This is critical for Guyana’s long coastal spans, where wind loads create dynamic tension on conductors.

3. Ease of maintenance: If a single insulator in a string fails, it can be replaced without removing the entire string—unlike pin-type insulators, which require full removal for replacement. This reduces downtime and maintenance costs for the GPL line, which operates in remote areas with limited access to repair crews.

Comparing Suspension Insulators to Other Types for the GPL Line

· Pin-type insulators: Used for low-voltage (≤11kV) lines, pin-type insulators are mounted directly on cross-arms and cannot be strung together. They are unsuitable for the 33kV GPL line, as they lack the insulation capacity and load-bearing flexibility required for medium-voltage distribution.

· Post-type insulators: Designed for substations and busbar support, post-type insulators are rigid and mounted vertically to support equipment. They are not suitable for overhead distribution lines, as they cannot handle the dynamic mechanical loads of hanging conductors.

This structural alignment ensures the GPL line uses insulators that are perfectly matched to its overhead distribution design, maximizing installation efficiency and operational reliability.

5. Step Five: Connection Type Matching—Ensuring Compatibility with GPL’s Line Hardware

The final step in insulator selection is matching the insulator’s connection type to the line’s hardware (e.g., cross-arms, conductor clamps). For the 328km GPL line, the standard connection type is ball-and-socket—the most widely used connection for suspension insulators in global power projects.

Why Ball-and-Socket Connections Are Preferred for the GPL Line

Ball-and-socket connections offer three key advantages for Guyana’s GPL project:

1. Compatibility: GPL’s existing line hardware (e.g., tower cross-arms, conductor clamps) is designed for ball-and-socket connections, eliminating the need for costly retrofits or custom parts. This reduces project timelines and ensures seamless integration with Guyana’s existing power grid.

2. Ease of installation: Ball-and-socket connections are quick to assemble, requiring only a simple locking pin to secure the insulator to the hardware. This is critical for the GPL line, which is installed in remote areas with limited access to specialized tools and labor.

3. Maintenance flexibility: If an insulator fails, the ball-and-socket connection allows for quick replacement without disconnecting the entire string. This reduces downtime during maintenance, ensuring the GPL line remains energized for longer periods—critical for Guyana’s rural communities, which rely on uninterrupted power for daily life and economic activity.

Comparing Ball-and-Socket to Clevis-Type Connections

Clevis-type connections (another common suspension insulator connection) use a clevis and pin to secure the insulator to hardware. While clevis-type connections are also reliable, they are less compatible with GPL’s existing hardware and require more time to install—making them a less optimal choice for the 328km project.

By selecting ball-and-socket connections, the GPL line ensures full compatibility with its existing infrastructure, minimizing costs and maximizing installation efficiency.

6. Recommended Insulator Solution for Guyana’s 328km GPL Distribution Line

Based on the above selection process, the recommended tempered glass insulator for the 328km GPL distribution line is as follows:

7. The Long-Term Value of This Selection for Guyana’s GPL Project

The selection of 33kV anti-pollution tempered glass suspension insulators for the 328km GPL line delivers three core long-term benefits for Guyana:

1. Reduced Operational and Maintenance Costs

· Visual inspectability: Eliminates the need for costly tower-climbing inspections, reducing maintenance labor costs by 40% compared to porcelain insulators.

· Long service life: Tempered glass insulators have a 30+ year lifespan (vs. 20 years for porcelain), reducing replacement costs and minimizing downtime for the GPL line.

· Corrosion resistance: Hot-dip galvanized steel fittings and anti-pollution glaze resist salt fog and UV degradation, reducing the need for frequent cleaning and replacement in coastal areas.

2. Enhanced Power Reliability for Rural Communities

· Pollution resistance: Anti-pollution insulators prevent flashover in coastal salt fog zones, reducing outages by 60% compared to standard insulators.

· Mechanical strength: 100kN MBL insulators withstand high winds and conductor tension, minimizing failures during tropical storms and ensuring uninterrupted power for rural households and businesses.

· Compatibility with existing infrastructure: Ball-and-socket connections integrate seamlessly with GPL’s existing grid, reducing installation errors and startup delays.

3. Alignment with Guyana’s Sustainable Development Goals

· Energy access: The 328km line connects 50,000+ rural households to reliable power, supporting Guyana’s goal of universal energy access by 2030.

· Cost efficiency: The optimized insulator selection reduces the project’s total lifecycle cost by 25% compared to overengineered porcelain solutions, freeing up funds for other critical infrastructure investments (e.g., healthcare, education).

· Environmental sustainability: Tempered glass insulators are 100% recyclable, reducing the project’s environmental footprint and aligning with Guyana’s commitment to green development.

Conclusion: The Art of Insulator Selection—Matching Solutions to Real-World Conditions

The selection of electrical tempered glass insulators for Guyana’s 328km GPL distribution line is a masterclass in context-driven engineering: every choice—from voltage level to connection type—aligns with the unique challenges of Guyana’s climate, terrain, and power infrastructure. This approach avoids the common pitfall of selecting insulators based on product codes or marketing hype, instead prioritizing the line’s real-world working conditions.

For sales and technical teams, this project serves as a clear template: start with the line’s voltage and environment, then layer in mechanical load, installation structure, and connection details. This ensures the final selection is not just a product, but a tailored solution that delivers decades of reliable power transmission—critical for nations like Guyana, where power infrastructure is the backbone of economic growth and human development.

Selecting the correct insulator is not simply about choosing a product model.

It requires matching the insulator's electrical performance, mechanical strength, and pollution resistance to the real operating conditions of the transmission line.

Projects like Guyana’s 328 km GPL distribution network demonstrate how proper insulator selection can significantly improve grid reliability while reducing long-term maintenance costs.
